926S Suspended light

Back


Power燈具尺寸(mm)流明/功率訂貨型號(hào)
Low1180*24*1204000lm/40W926S.Q120/P120W
1470*24*1205000lm/50W926S.Q125/P125W
2340*24*1208000lm/80W926S.Q140/P140W
Medium1180*24*1205600lm/56W926S.Q128/P128W
1470*24*1207000lm/70W926S.Q135/P135W
2340*24*12011200lm/112W926S.Q156/P156W





Power燈具尺寸(mm)流明/功率訂貨型號(hào)
Low1180*24*1204000lm/40W926S.P120W
1470*24*1205000lm/50W926S.P125W
2340*24*1208000lm/80W926S.P140W
Medium1180*24*1205600lm/56W926S.P128W
1470*24*1207000lm/70W926S.P135W
2340*24*12011200lm/112W926S.P156W




Power燈具尺寸(mm)流明/功率訂貨型號(hào)
Low1180*24*1202000lm/20W926S.P120W
Medium1180*24*1202800lm/28W926S.P128W

可訂制上下射光,燈具尺寸不變,功率增加。 Can customize Direct/Indirect light, the fixture size is the same, the power will be  increase.




Material & technology


Light distribution:Direct/Indirect Light or Direct Light

Light source:High brightness SMD LED

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with White, can customize Wooden color

Diffuser: Opal prismatic diffuser with high transmittance and uniformity light

End caps material:ABS

IP:20

Connection:The luminaries can be connected with end cap

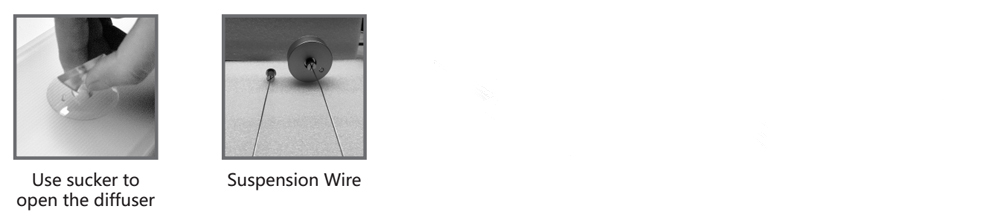

Installation:-Suspended, W-Wall mounted
