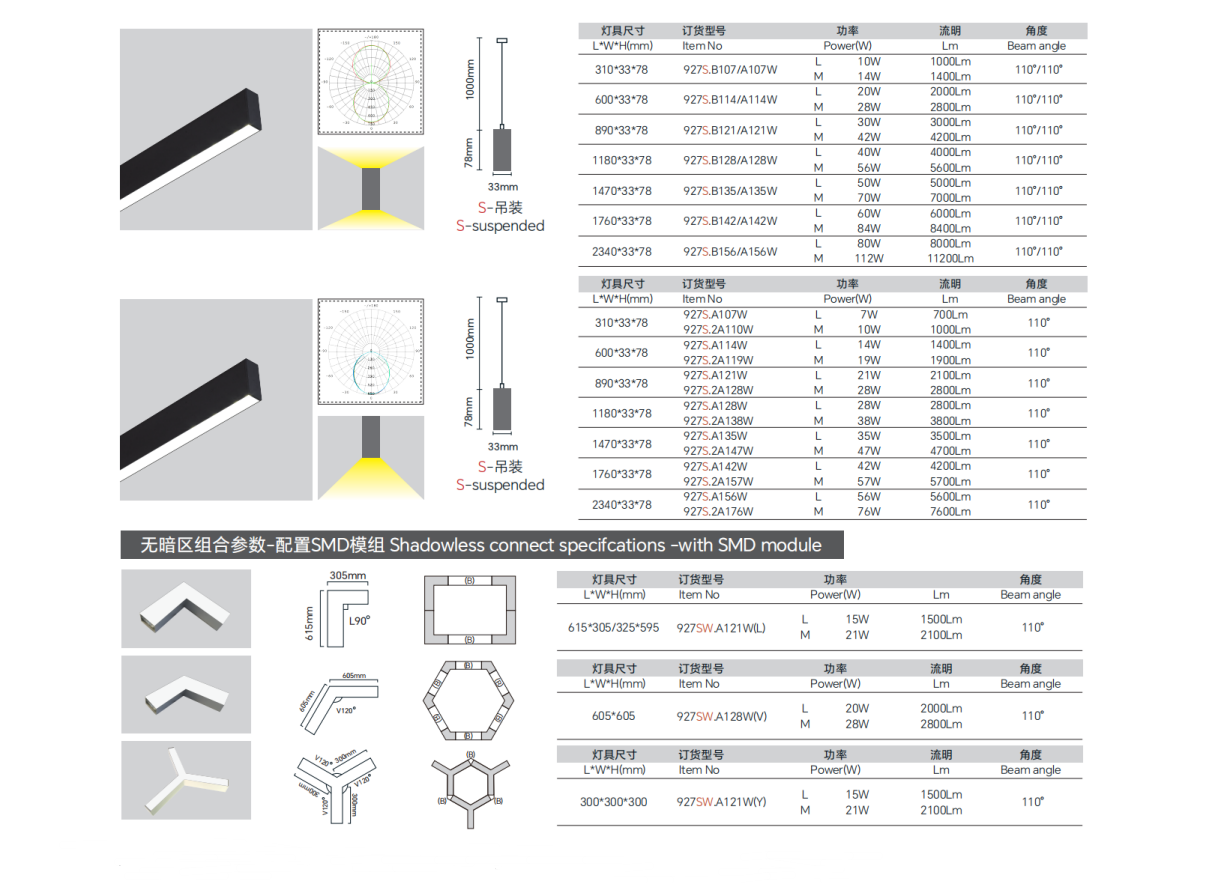

| Power | L*W*H(mm) | Lumen/Power | Item No |
|---|---|---|---|
| Low | 1180*33*78 | 2000lm/20W | 927S.P120W |
| 1470*33*78 | 2500lm/25W | 927S.P125W | |
| 2340*33*78 | 4000lm/40W | 927S.P140W | |
| Medium | 1180*33*78 | 2800lm/28W | 927S.P128W |
| 1470*33*78 | 3500lm/35W | 927S.P135W | |
| 2340*33*78 | 5600lm/56W | 927S.P156W |
| Power | L*W*H(mm) | Lumen/Power | Item No |
|---|---|---|---|
| Low | 1180*33*78 | 4000lm/40W | 927S.Q120/P120W |
| 1470*33*78 | 5000lm/50W | 927S.Q125/P125W | |
| 2340*33*78 | 8000lm/80W | 927S.Q140/P140W | |
| Medium | 1180*33*78 | 5600lm/56W | 927S.Q128/P128W |
| 1470*33*78 | 7000lm/70W | 927S.Q135/P135W | |
| 2340*33*78 | 11200lm/112W | 927S.Q156/P156W |

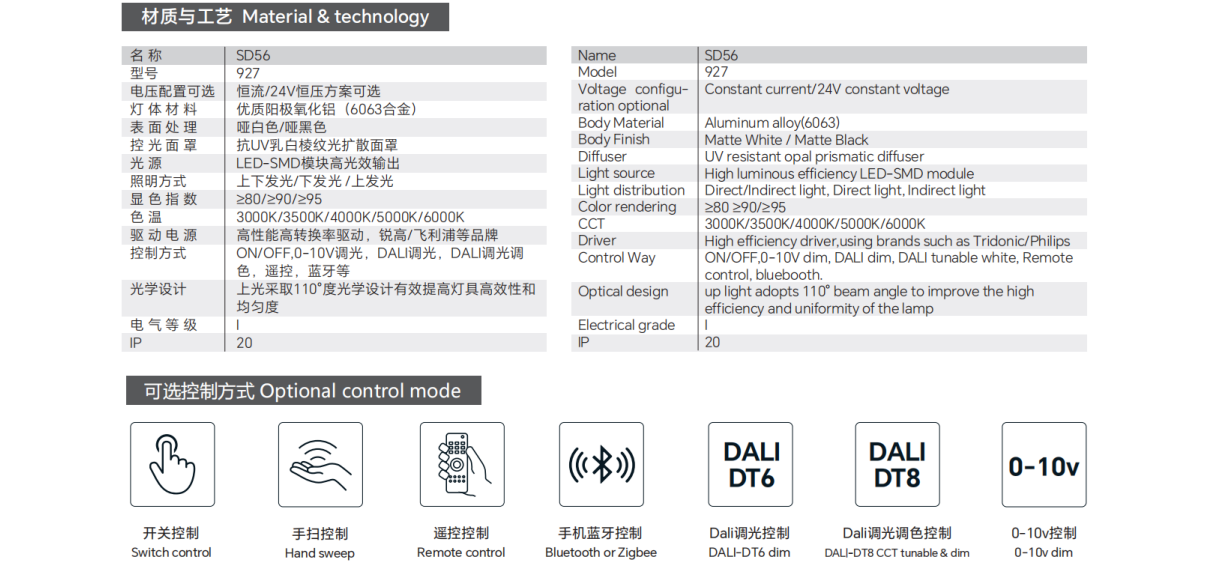

Material & technology
Light distribution：Direct Light
Light source：High brightness SMD LED
Color rendering：CRI≥80, can customize CRI≥90
CCT：3000K, 4000K, 6500K, can customize 5000K
Driver：Equipped with high conversion rate driver, optional with 0-10Vdimming, DALI dimming, SCR dimming
Other functions：Optional with emergency kits and multifunction sensor
Lamp material：High grade anodizing aluminum (6063 Alloy), painted with White/Black, can customize other color
Diffuser：Opal prismatic diffuser combined with LED module,LED Module with light angle 48°，or customize 34°/12°
End caps material：ABS
IP：20

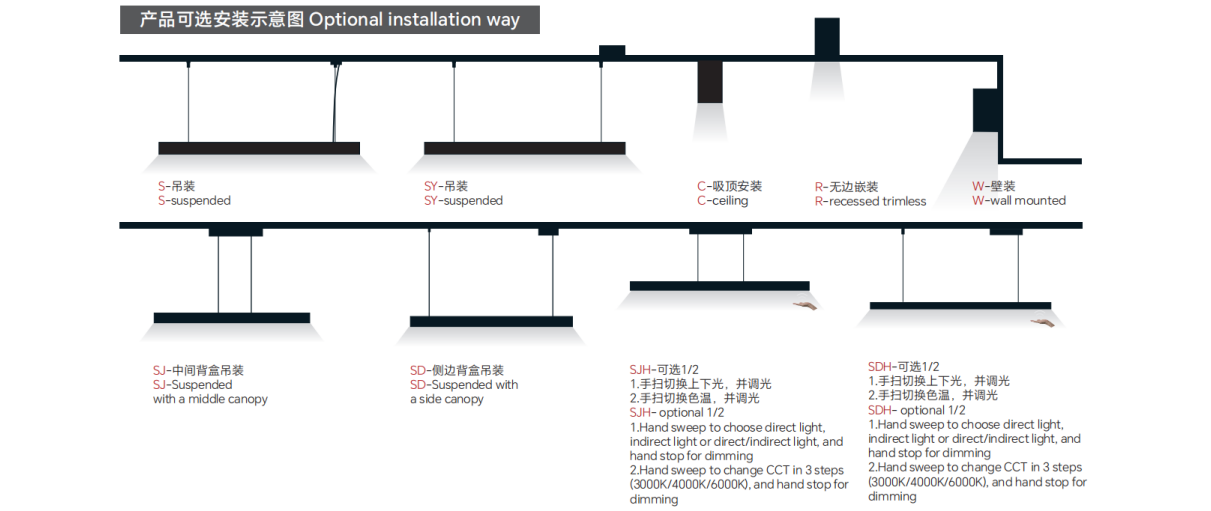

Installation：S-Suspended , R-Recessed without trim，Can connect with end caps,also can make 180° or 90° shadowless system without end caps.
