203Q Recessed without trim light

Back


PowerL*W*H(mm)Lumen/PowerItem No
Low1190*50*662000lm/20W203Q.F120W
1480*50*662500lm/25W203Q.F125W
2350*50*664000lm/40W203Q.F140W
Medium1190*50*662800lm/28W203Q.A128W
1480*50*663500lm/35W203Q.A135W
2350*50*665600lm/56W203Q.A156W
High1190*50*665320lm/38W203Q.2A138W
1480*50*666580lm/47W203Q.2A147W
2350*50*6610640lm/76W203Q.2A176W


Material & technology

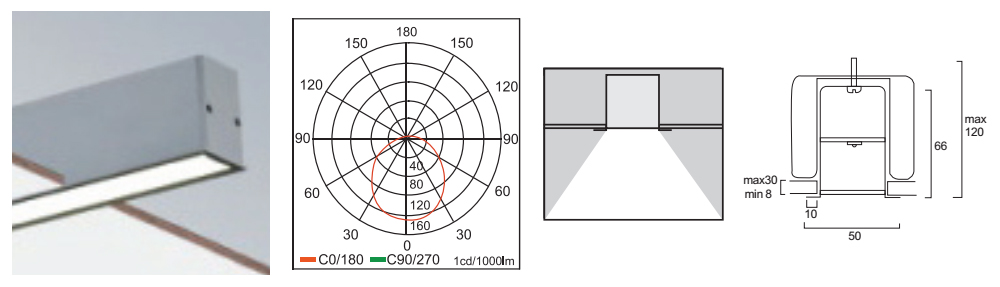

Light distribution:Direct Light

Light source:High brightness SMD LED, or T5 (G5)

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Other functions:Optional with emergency kits and multifunction sensor

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with White color, can customize other color

Diffuser:Opal prismatic diffuser

End caps material:ABS

IP:20

Connection:Can make shadowless continuous lighting system

Installation:Q-Recessed with trim
