| Power | L*W*H(mm) | Lumen/Power | Item No |
|---|---|---|---|
| Low | 1192*75*80 | 2000lm/20W | 901Q.F120W |
| 1482*75*80 | 2500lm/25W | 901Q.F125W | |
| 2352*75*80 | 4000lm/40W | 901Q.F140W | |
| Medium | 1192*75*80 | 2800lm/28W | 901Q.A128W |
| 1482*75*80 | 3500lm/35W | 901Q.A135W | |
| 2352*75*80 | 5600lm/56W | 901Q.A156W | |
| High | 1192*75*80 | 5320lm/38W | 901Q.2A138W |
| 1482*75*80 | 6580lm/47W | 901Q.2A147W | |
| 2352*75*80 | 10640lm/76W | 901Q.2A176W |
Material & technology

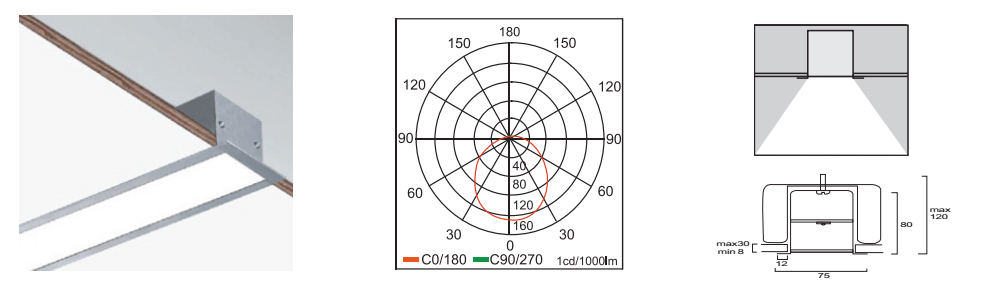

Light distribution：Direct Light
Light source：High brightness SMD LED, or T5 (G5)
Color rendering：CRI≥80, can customize CRI≥90
CCT：3000K, 4000K, 6500K, can customize 5000K
Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming
Other functions：Optional with emergency kits and multifunction sensor
Lamp material：High grade anodizing aluminum (6063 Alloy), painted with White color, can customize other color
Diffuser：Opal prismatic diffuser, “I” shape louvre
End caps material：ABS
IP：20
Connection：Lamp with LED SMD strip can make shadowless continuous lighting system
Installation：Q-Recessed with trim
