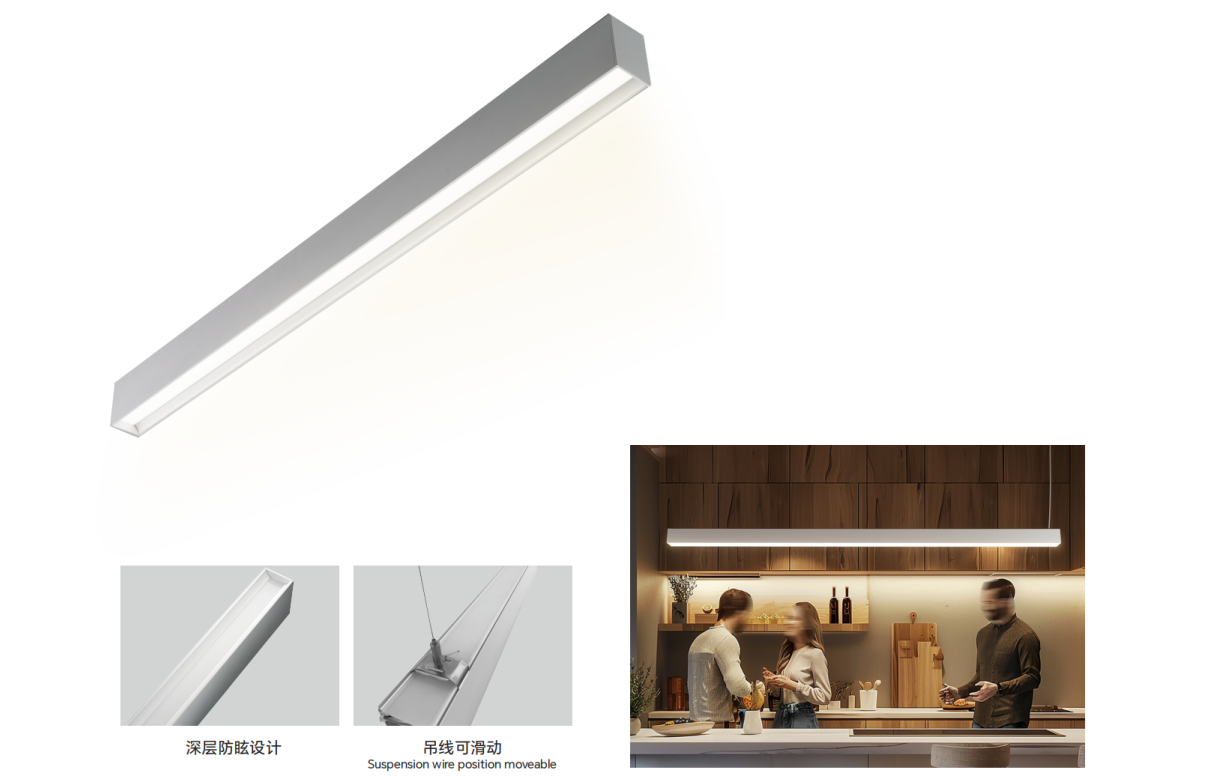

929-2S Suspended light

Back


PowerL*W*H(mm)Lumen/PowerItem No
Low 1176*60*882000lm/20W929-2S.F120W
1466*60*882500lm/25W929-2S.F125W
2336*60*884000lm/40W929-2S.F140W
Medium1176*60*882800lm/28W929-2S.A128W
1466*60*883500lm/35W929-2S.A135W
2336*60*885600lm/56W929-2S.A156W
High
1176*60*8810640lm/76W929-2S.2A138W
1466*60*886580lm/47W929-2S.2A147W
2336*60*887000lm/70W929-2S.2A176W

Can customize Direct/Indirect light, the fixture size is the same, the power will be double.


Material & technology


Light distribution:Direct Light or Direct / Indirect light

Light source:High brightness SMD LED

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10Vdimming, DALI dimming, SCR dimming

Other functions:Optional with emergency kits and multifunction sensor

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with Pure White, can customize other color

Diffuser:Opal prismatic diffuser combined with LED module,LED Module with light angle 48°,or customize 34°/12°

End caps material:ABS

IP:20

Installation:S-Suspended,C-Ceiling mounted,  W-Wall mounted,R-Recessed without trim,Can connect with end caps,also can make 180° or 90° shadowless system without end caps.  ,Can connect with end caps,also can make 180° or 90° shadowless system without end caps.
