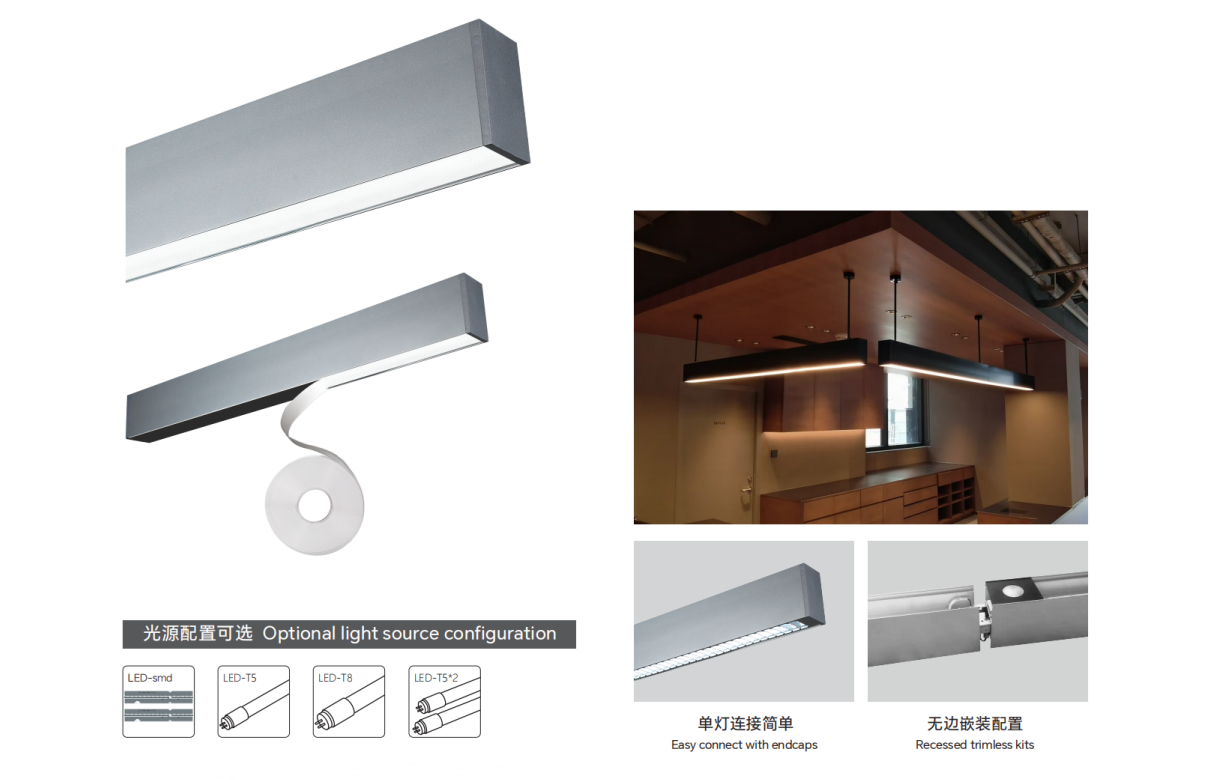

908S Suspended light

Back

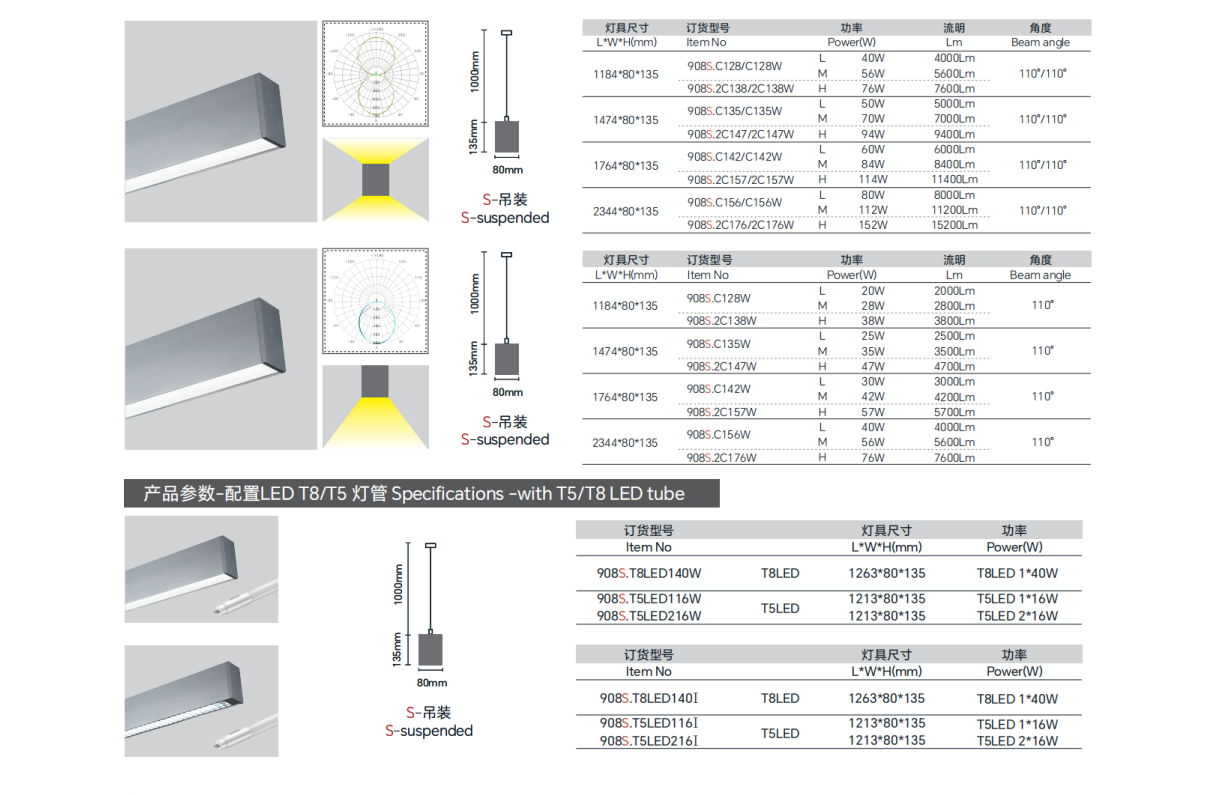

PowerL*W*H(mm)Lumen/PowerItem No
Low1184*80*1354000lm/40W908S.H120W/H120W
1474*80*1355000lm/50W908S.H125W/H125W
2344*80*1358000lm/80W908S.H140W/H140W
Medium 1184*80*1355600lm/56W908S.C128W/C128W
1474*80*1357000lm/70W908S.C135W/C135W
2344*80*135112000lm/112W908S.C156W/C156W
High
1184*80*13510640lm/76W908S.2C138/2C138W
1474*80*13513160lm/94W908S.2C147/2C147W
2344*80*13521280lm/152W908S.2C176/2C176W

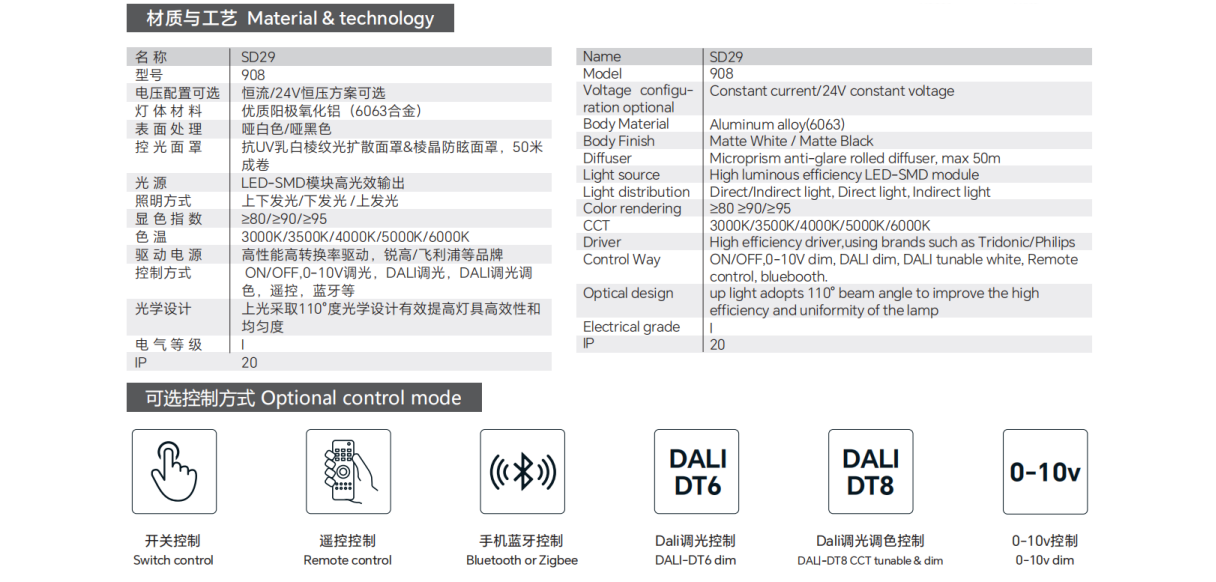

Material & technology

Light distribution：Direct/Indirect Light or Direct Light

Light source：High brightness SMD LED, or T5 (G5)

Color rendering：CRI≥80, can customize CRI≥90

CCT：3000K, 4000K, 6500K, can customize 5000K

Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Lamp material：High grade anodizing aluminum (6063 Alloy), painted with White, can customize other color

Diffuser：Opal prismatic diffuser or “I” shape louvre

End caps material：ABS

IP：20

Connection：Can make shadowless continuous lighting system

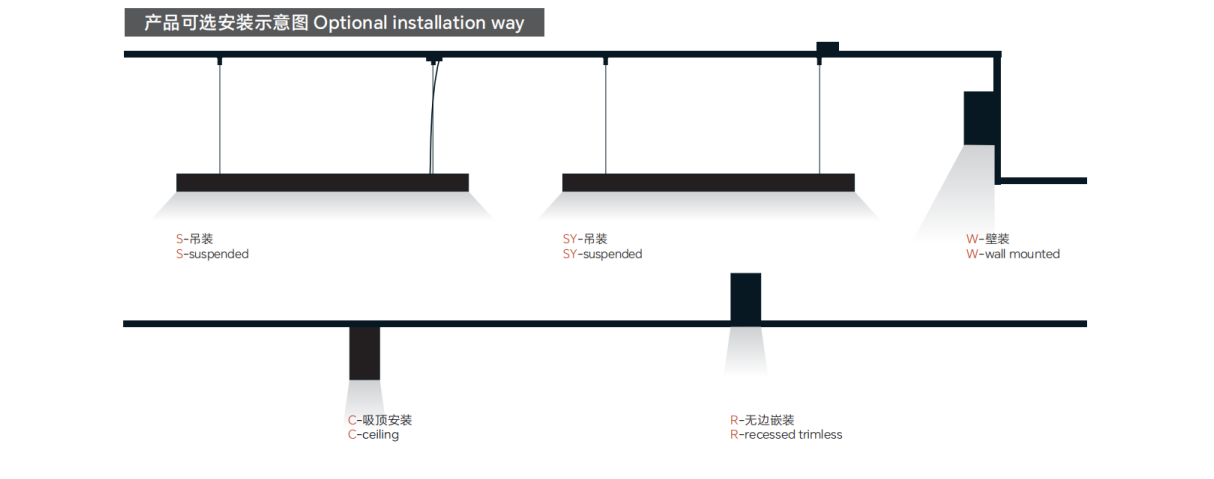

Installation：S-Suspended
