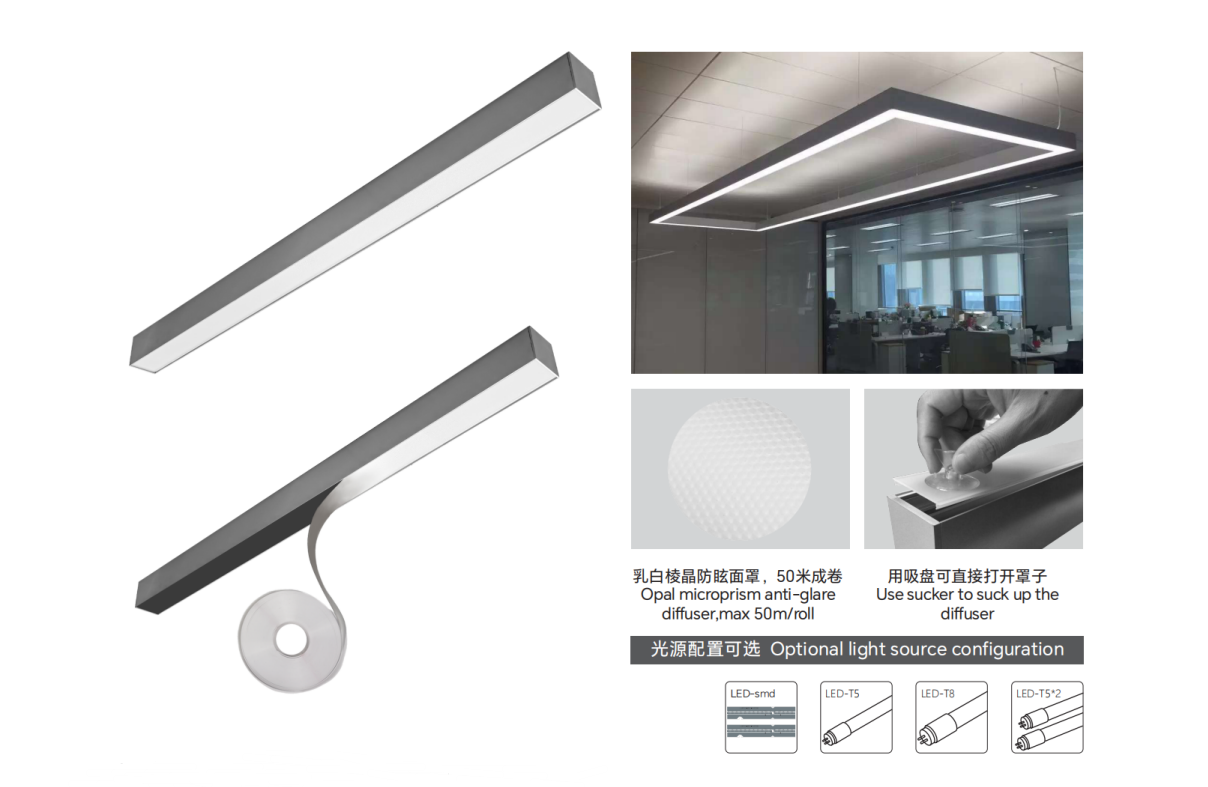

205S Suspend light

Back

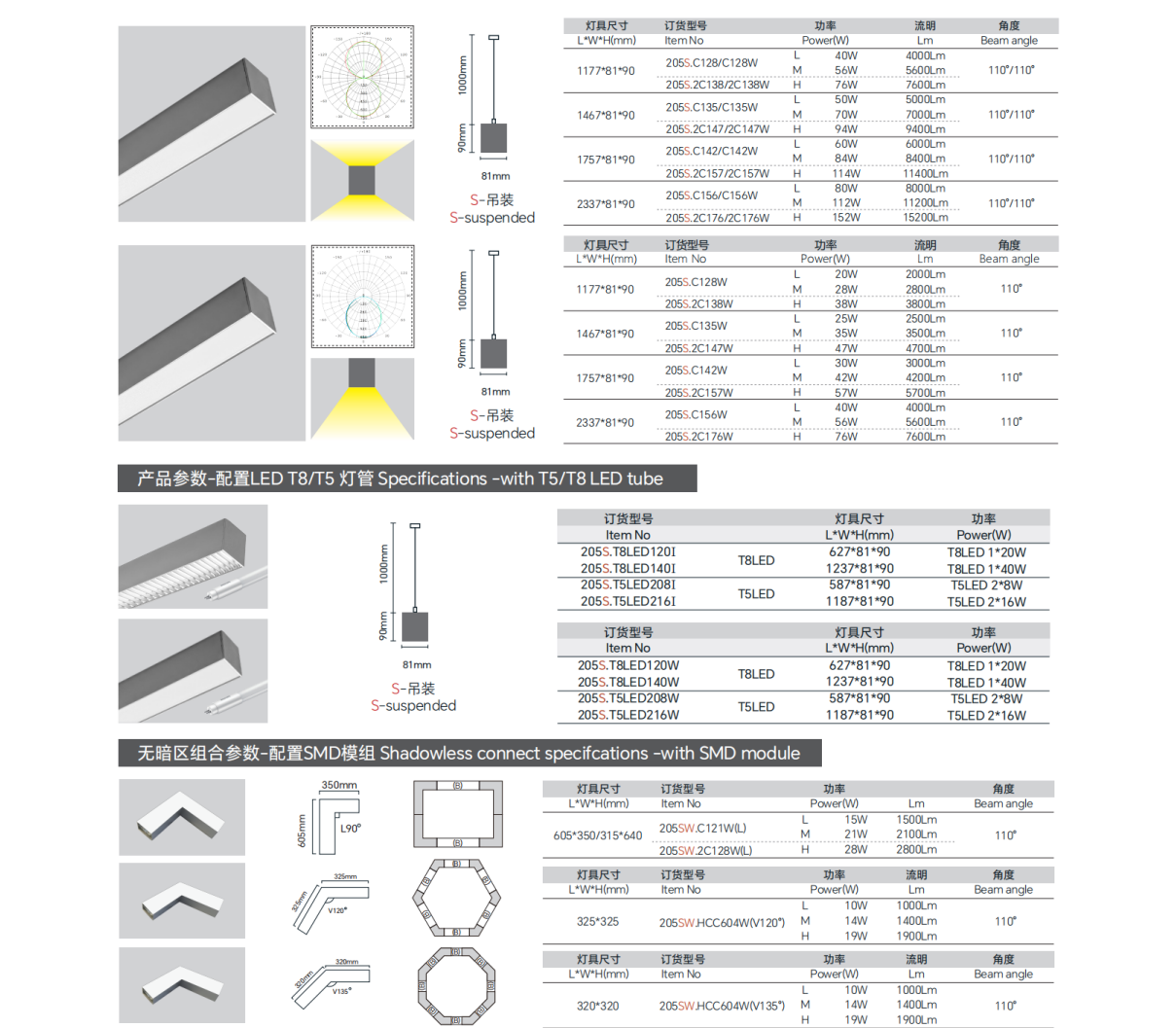

PowerL*W*H(mm)Lumen/PowerItem No
Low 1177*81*902000lm/20W205S.H120W
1467*81*902500lm/25W205S.H125W
2337*81*904000lm/40W205S.H140W
Medium1177*81*902800lm/28W205S.C128W
1467*81*903500lm/35W205S.C135W
2337*81*905600lm/56W205S.C156W
High
1177*81*905320lm/38W203S.2A138W
1467*81*906580lm/47W203S.2A147W
2337*81*9010640lm/76W203S.2A176W



PowerL*W*H(mm)Lumen/PowerItem No
Low1177*81*904000lm/40W205S.F120/H120W
1467*81*905000lm/50W205S.F125/H125W
2337*81*908000lm/80W205S.F140/H140W
Medium1177*81*905600lm/56W205S.A128/C128W
1467*81*907000lm/70W205S.A135/C135W
2337*81*9011200lm/112W205S.A156/C156W
High
1177*81*905320lm/38W205S.2A138/2C138W
1467*81*906580lm/47W205S.2A147/2C147W
2337*81*9010640lm/76W205S.2A176/2C176W

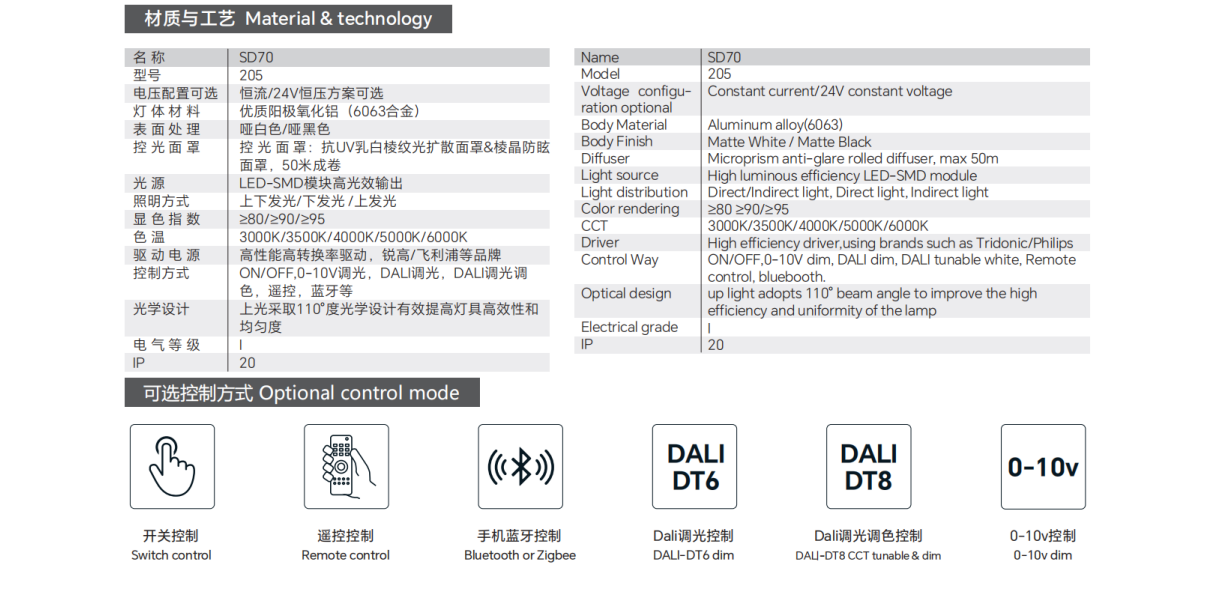

Material & technology

Light distribution：Direct/Indirect Light or Direct Light

Light source：High brightness SMD LED, or T5 (G5)

Color rendering：CRI≥80, can customize CRI≥90

CCT：3000K, 4000K, 6500K, can customize 5000K

Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Lamp material：High grade anodizing aluminum (6063 Alloy), painted with Glossy Silver, can customize other color

Diffuser：Opal prismatic diffuser with high transmittance and  uniformity light                  End caps material：ABS

IP：20

Connection：Can make shadowless continuous lighting system

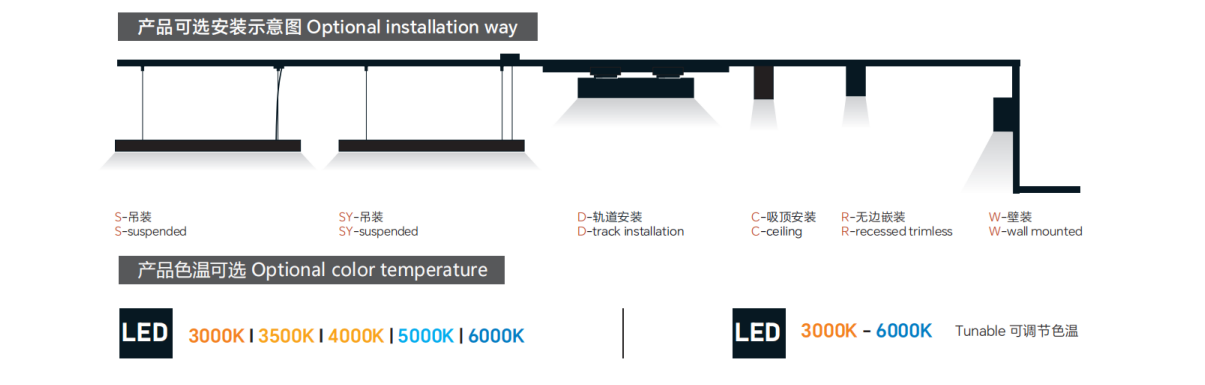

Installation：S-Suspended, C-Ceiling mounted, or R-Recessed without trim
