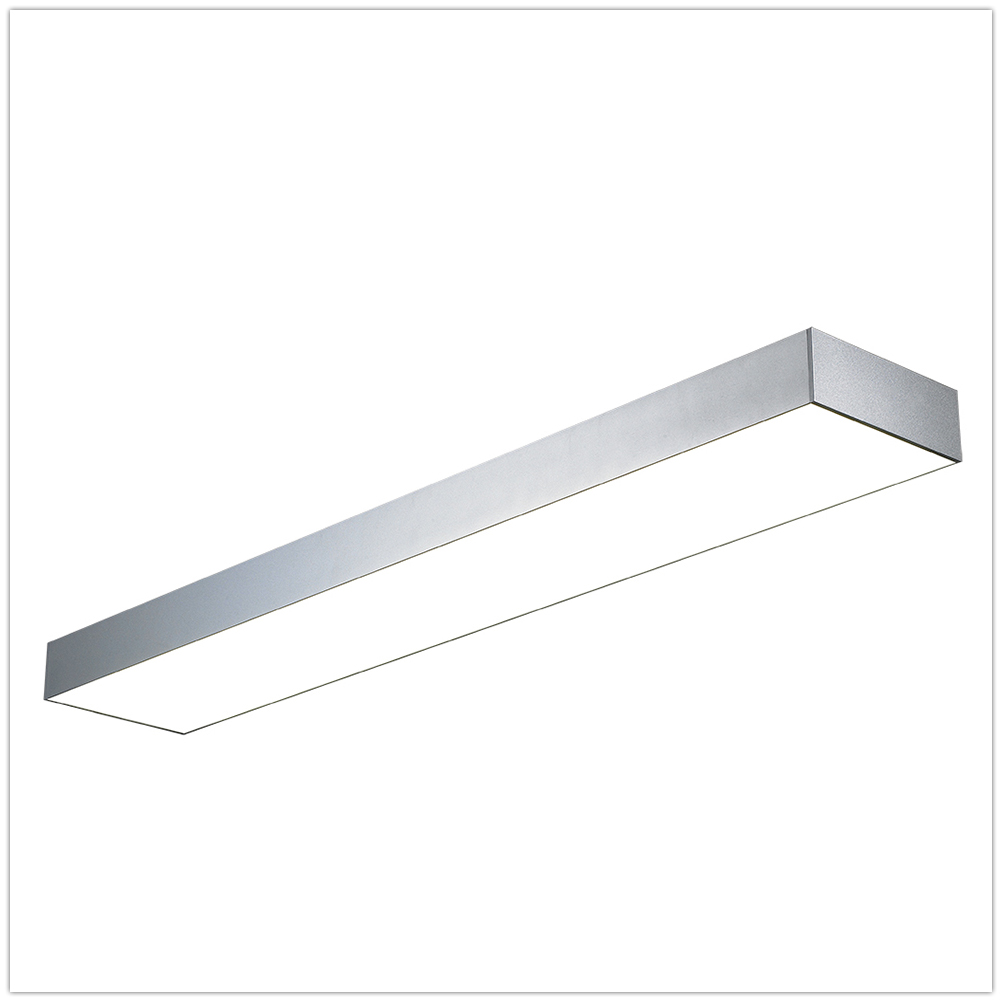

920R Recessed with trim light

Back


PowerL*W*H(mm)Lumen/PowerItem No
Low1180*200*704000lm/40W920R.F220W
1470*200*705000lm/50W920R.F225W
2340*200*708000lm/80W920R.F240W
Medium1180*200*705600lm/56W920R.A228W
1470*200*707000lm/70W920R.A235W
2340*200*7011200lm/112W920R.A256W
FigF1180*200*7010640lm/76W920R.2A2238W
1470*200*7013160lm/94W920R.2A2247W
2340*200*7021280lm/152W920R.2A2276W


Material & technology

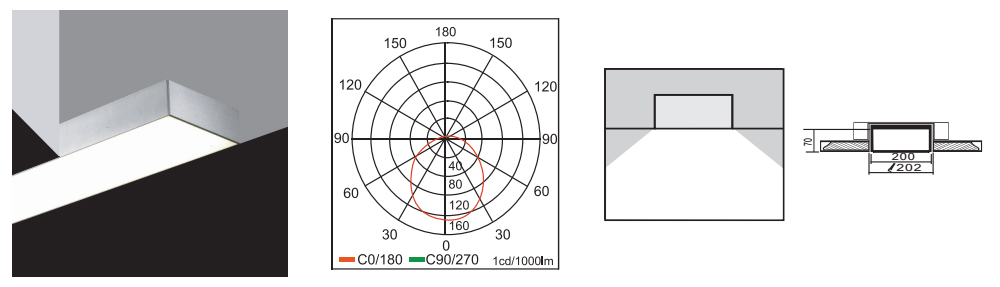

Light distribution:Direct Light

Light source:High brightness SMD LED, or T5 (G5)

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with White, can customize other color

Diffuser:Opal prismatic diffuser with high transmittance and uniformity light

End caps material:ABS

IP:20

Connection:Can make shadowless continuous lighting system

Installation:S-Suspended, C-Ceiling mounted,R-Recessed without trim
