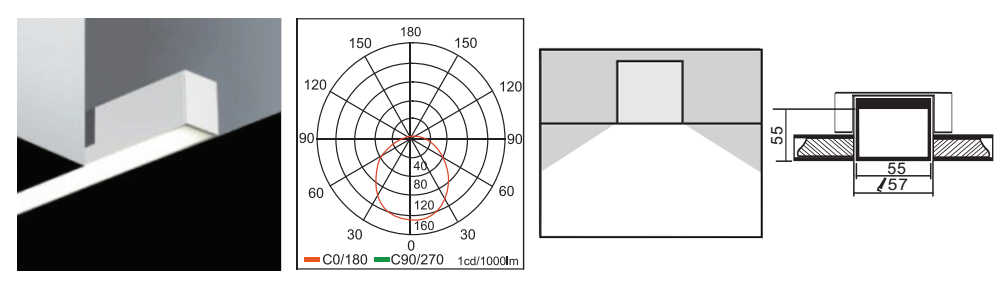

701R Recessed with trim light

Back


PowerL*W*H(mm)Lumen/PowerItem No
Low1180*55*552000lm/20W701R.F120W
1470*55*552500lm/25W701R.F125W
2340*55*554000lm/40W701R.F140W
Medium1180*55*552800lm/28W701R.A128W
1470*55*553500lm/35W701R.A135W
2340*55*555600lm/56W701R.A156W
High1180*55*553800Lm/38W701R.2A138W
1470*55*554700Lm/47W701R.2A147W
2340*55*557600Lm/76W701R.2A176W


Material & technology


Light distribution:Direct Light

Light source:High brightness SMD LED, or T5 (G5)

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with White, can customize other color

Diffuser:Opal prismatic diffuser with high transmittance and uniformity light                    End caps material:ABS

IP:20

Connection:Lamp with LED SMD strip can make shadowless continuous lighting system

Installation:S-Suspended, C-Ceiling mounted, R-Recessed without trim
