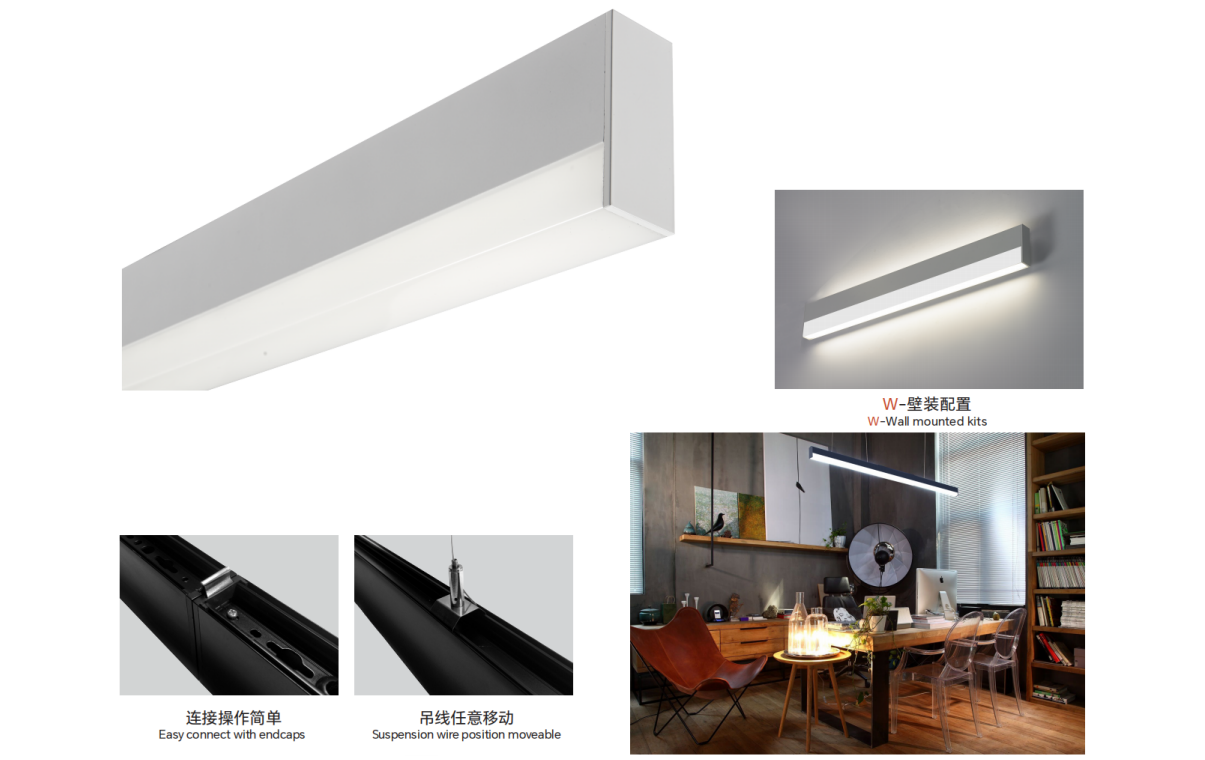

927-3S Suspended light

Back


Power

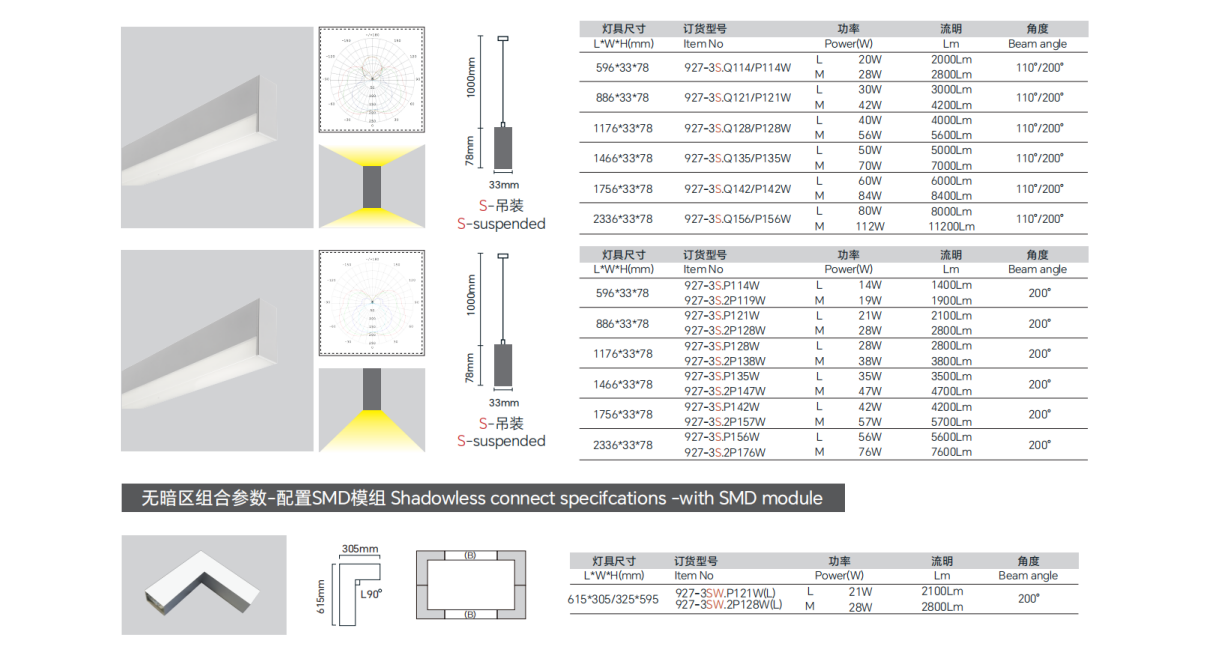

L*W*H(mm)Lumen/PowerItem No
Low1180*33*782000lm/20W927-3S.P120W
1470*33*782500lm/25W927-3S.P125W
2340*33*784000lm/40W927-3S.P140W
Medium1180*33*782800lm/28W927-3S.P128W
1470*33*783500lm/35W927-3S.P135W
2340*33*785600lm/56W927-3S.P156W






Power
L*W*H(mm)Lumen/PowerItem No
Low 1180*33*784000lm/40W927-3S.Q120/P120W
1470*33*785000lm/50W927-3S.Q125/P125W
2340*33*788000lm/80W927-3S.Q140/P140W
Medium1180*33*785600lm/56W927-3S.Q128/P128W
1470*33*787000lm/70W927-3S.Q135/P135W
2340*33*7811200lm/112W927-3S.Q128/P128W

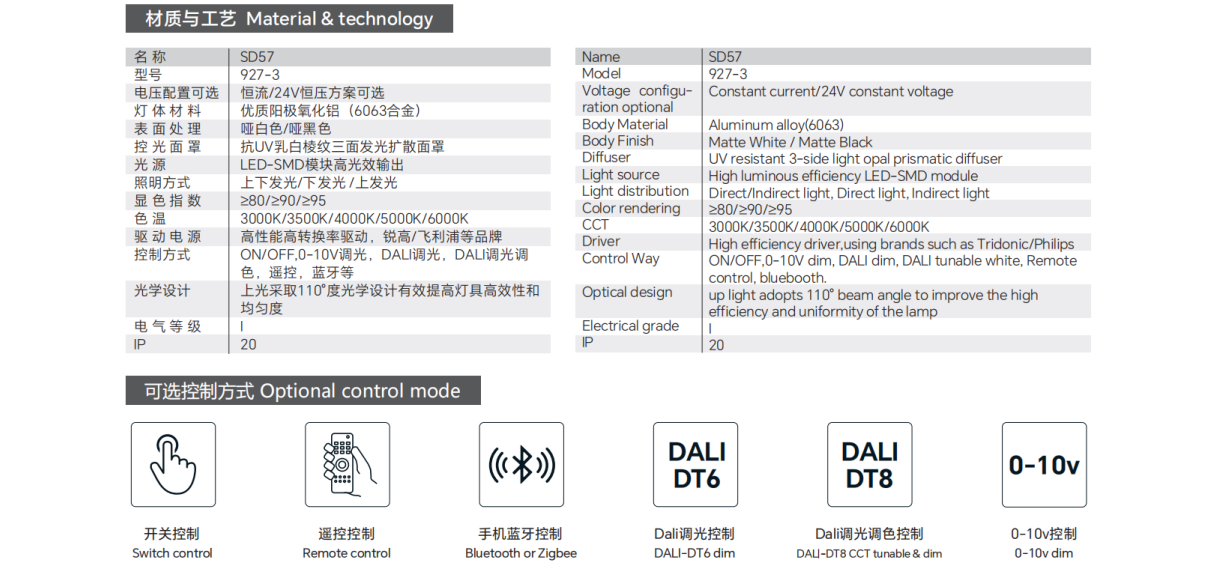

Material & technology


Light distribution:Direct Light,or Direct/Indirect light

Light source:High brightness SMD LED

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10V  dimming, DALI dimming, SCR dimming

Other functions:Optional with emergency kits and multifunction sensor

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with Pure  White, can customize other color

Diffuser:Opal prismatic diffuser,with high transmittance and uniformity light                  End caps material:ABS

IP:20

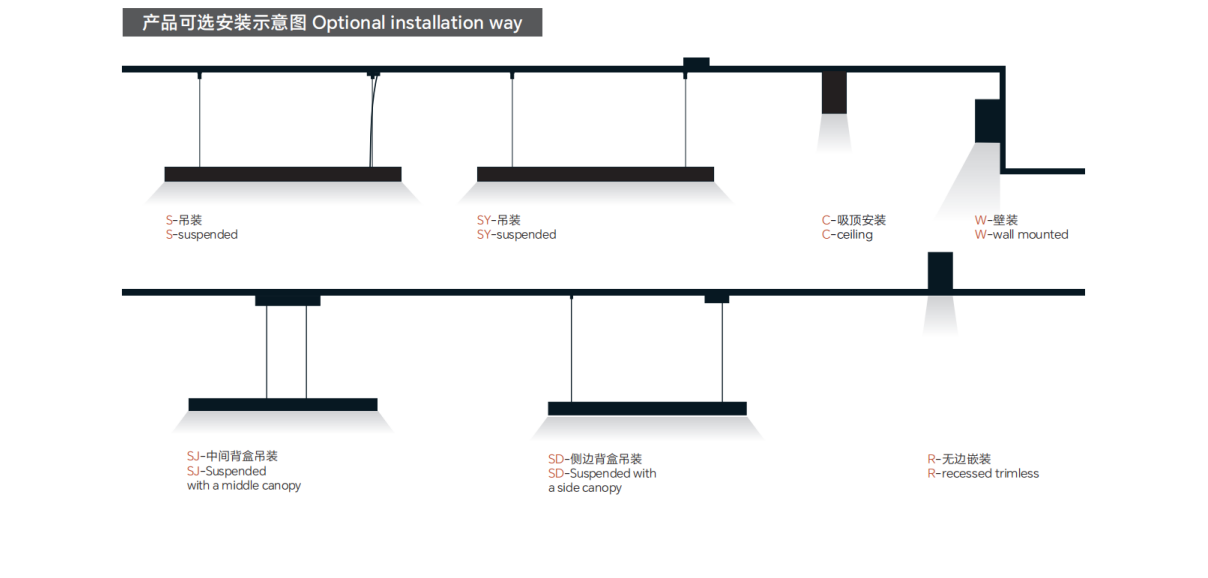

Installation:S-Suspended,C-Ceiling mounted,R-Recessed without trim,Can connect with end caps,also can make 180°shadowless system without end caps.
