289-6S Suspended light

Back

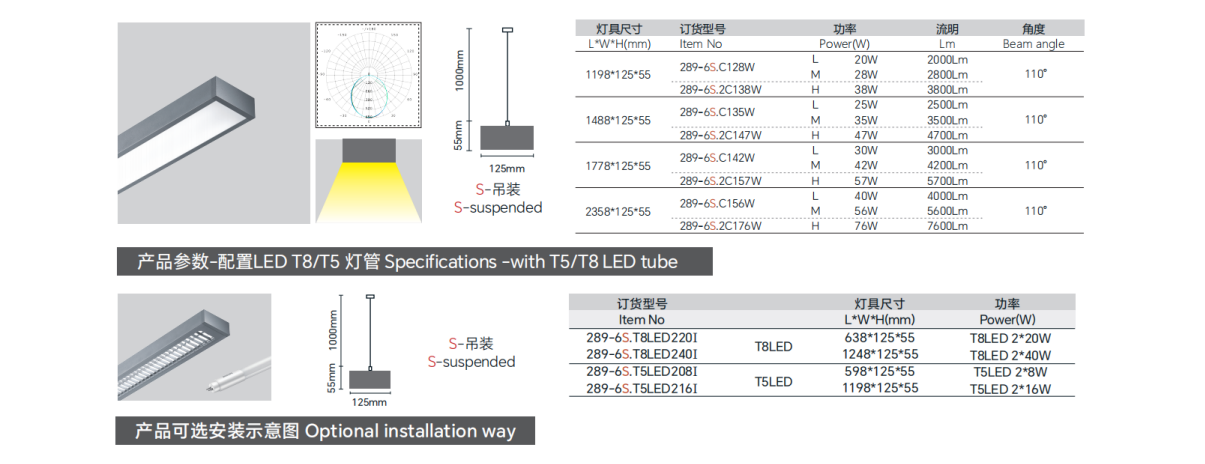

PowerL*W*H(mm)Lumen/PowerItem No
Low1198*125*552000lm/20W289-6S.H110W
1488*125*552500lm/25W289-6S.H125W
2358*125*554000lm/40W289-6S.H126W
Medium1198*125*552800lm/28W289-6S.C128W
1488*125*553500lm/35W289-6S.C135W
2358*125*555600lm/56W289-6S.C156W
High
1198*125*555320lm/38W289-6S.2C138W
1488*125*556580lm/47W289-6S.2C147W
2358*125*5521280lm/152W289-6S.2C176W




PowerL*W*H(mm)Lumen/PowerItem No
Low1198*125*554000lm/40W289-6S.F220W
1488*125*555000lm/50W289-6S.F225W
2358*125*554000lm/40W289-6S.F240W
Medium1198*125*555600lm/56W289-6S.A228W
1488*125*557000lm/70W289-6S.A235W
2358*125*555600lm/56W289-6S.A256W
High1198*125*5510640lm/76W289-6S.2A238W
1488*125*5513160lm/94W289-6S.2A247W
2358*125*5521280lm/152W289-6S.2A256W

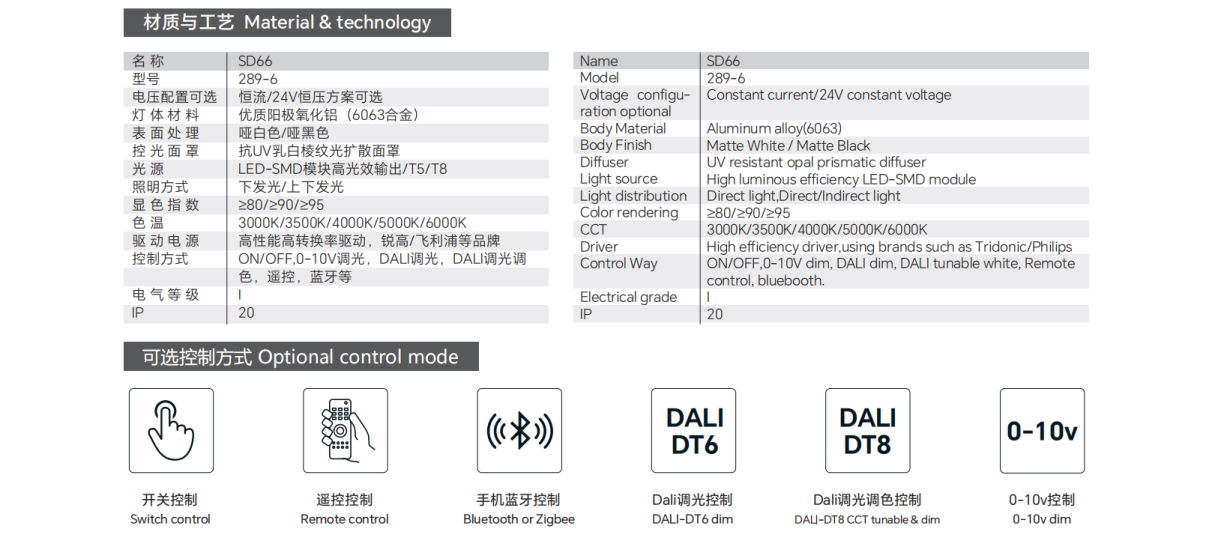

Material & technology

Light distribution：Direct Light，can be customized as direct / indirect light

Light source：High brightness SMD LED, or T5 (G5)

Color rendering：CRI≥80, can customize CRI≥90

CCT：3000K, 4000K, 6500K, can customize 5000K

Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Lamp material：High grade anodizing aluminum (6063 Alloy), painted with White can customize other color

Diffuser：Opal prismatic diffuser with high transmittance and uniformity light

End caps material：ABS

IP：20

Connection：Can make shadowless continuous lighting system

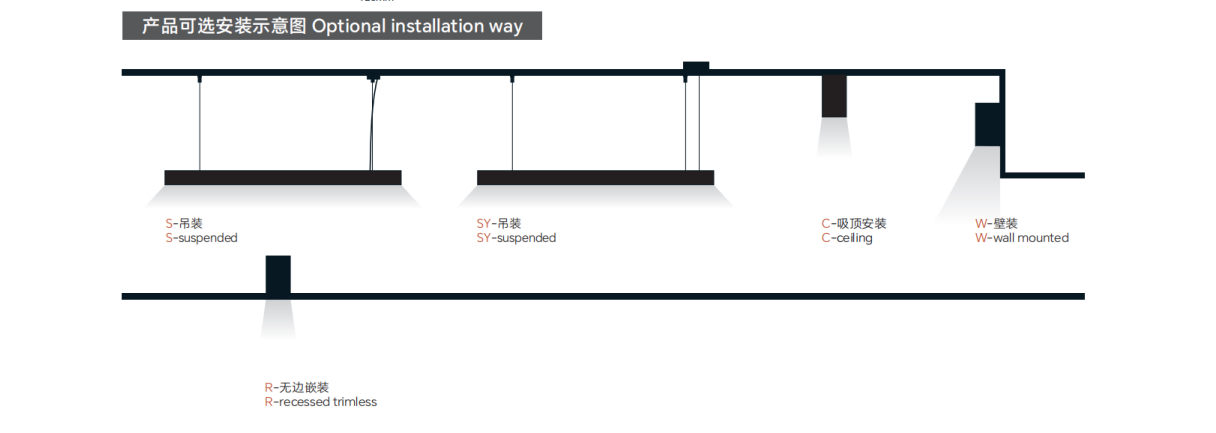

Installation：S-Suspended, C-Ceiling mounted，R-Recessed without trim
