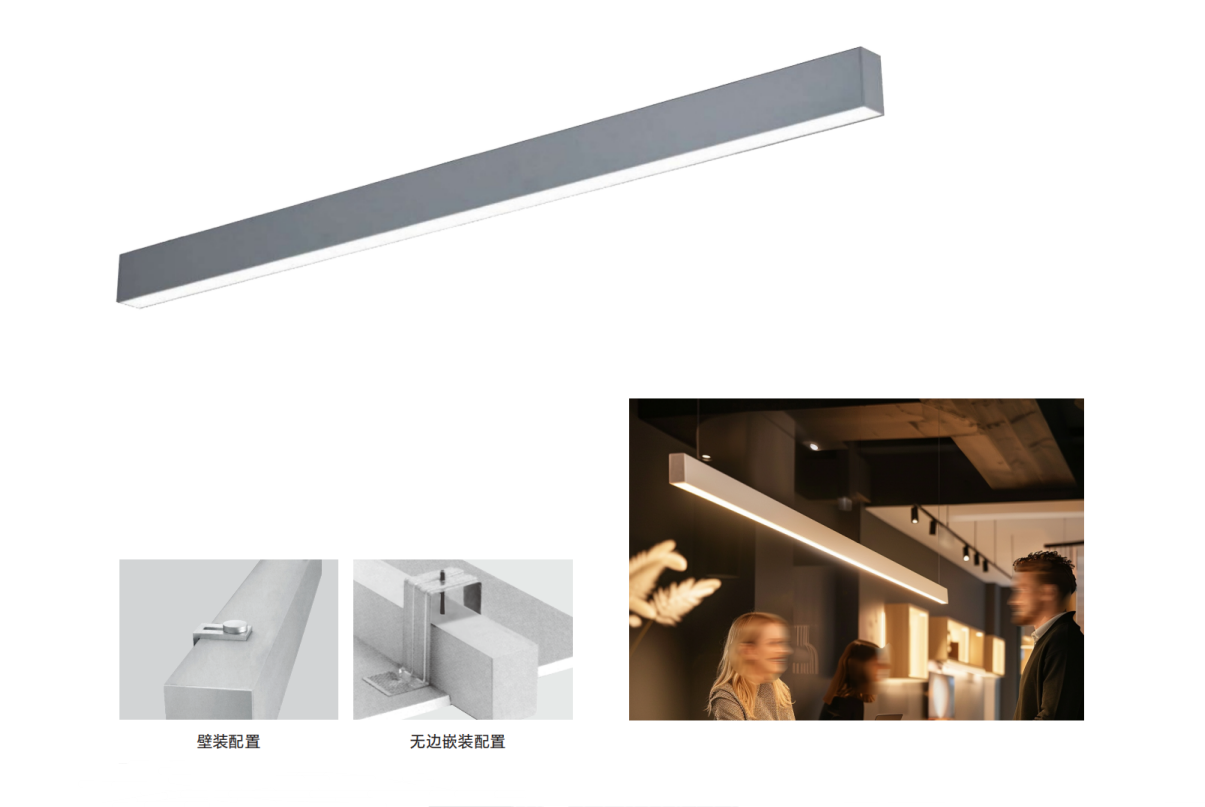

203S Suspend light

Back

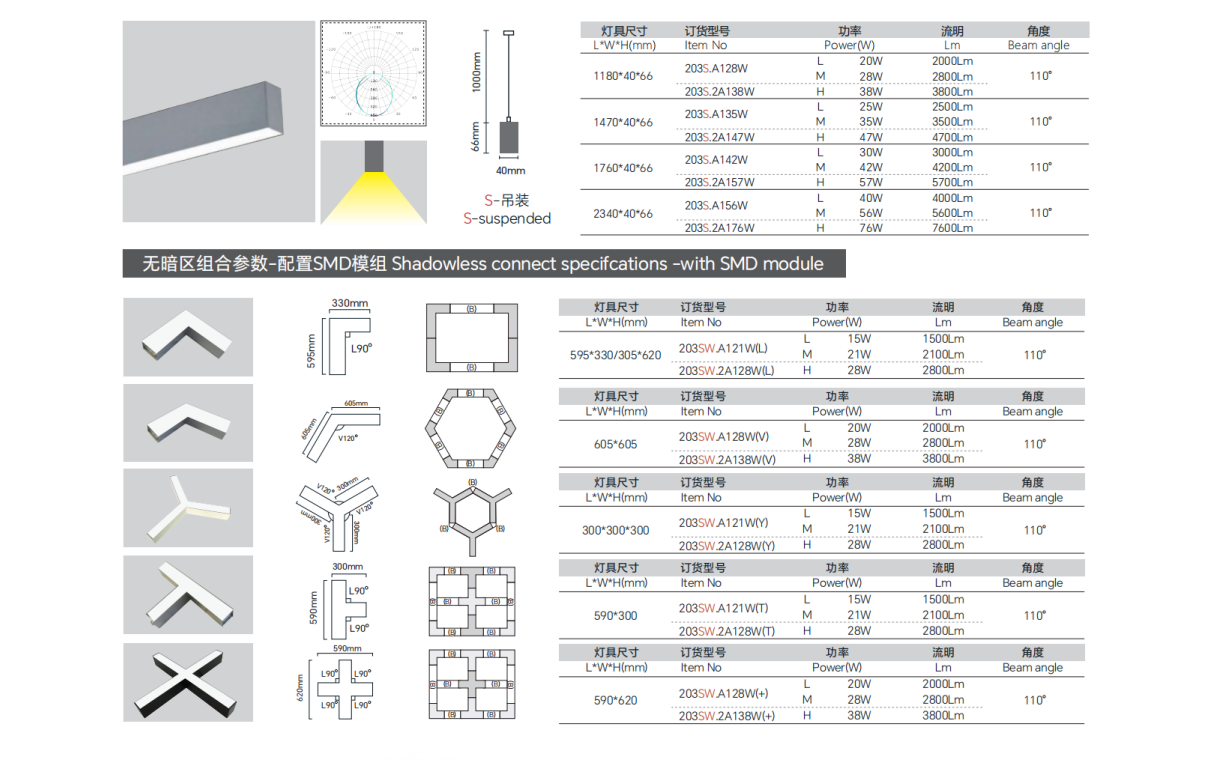

 PowerL*W*H(mm)Lumen/PowerItem No
Low1180*40*662000lm/20W203S.F120W
1470*40*662500lm/25W203S.F125W
2340*40*664000lm/40W203S.F140W
Medium1180*40*662800lm/28W203S.A128W
1470*40*663500lm/35W203S.A135W
2340*40*665600lm/56W203S.A156W
High
1180*40*665320lm/38W203S.2A138W
1470*40*666580lm/47W203S.2A147W
2340*40*6610640lm/76W203S.2A176W

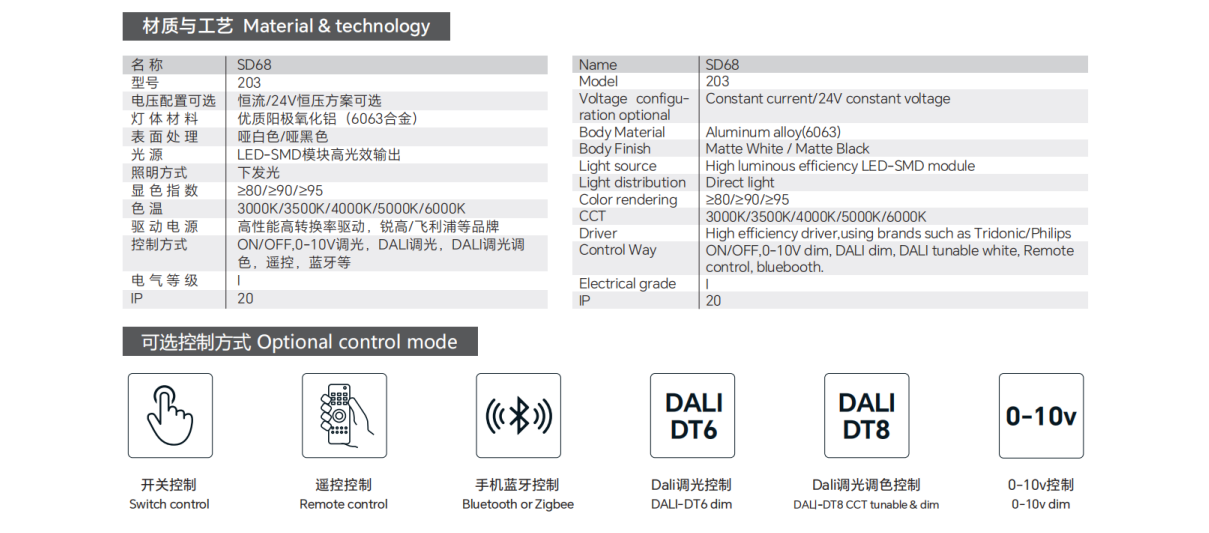

Material & technology


Light distribution:Direct Light

Light source:High brightness SMD LED, or T5 (G5)

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Other functions:Optional with emergency kits and multifunction sensor

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with White, can customize other color

Diffuser:Opal prismatic diffuser with high transmittance and uniformity light

End caps material:ABS

IP:20

Connection:Can do arbitrary combination and make shadowless continuous lighting system

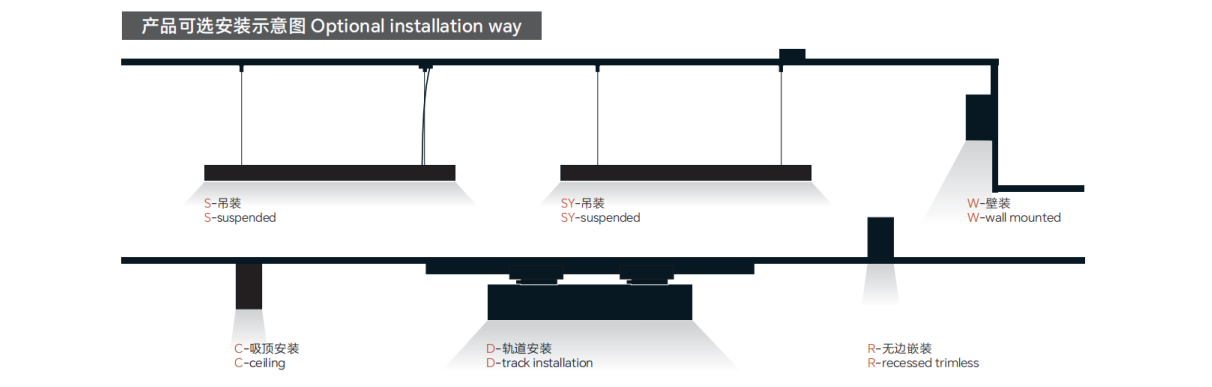

Installation:S-Suspended,C-Ceiling mounted,W-wall mounted,R-recessed  without trim
